2240 Choose-A-Part

All OEM parts for 2240, 2250, 2260, 1377, 1322 & 2289 available.

This is the 2240 buyer's table. Other models coming soon!

All prices listed are INDIVIDUAL. In instances where you would normally need multiples (ie, Grip Screws x2), you need to purchase multiples.

Having said that, I won't price gouge you. $20 for two screws is ridiculous, so I will bill your card at a reasonable amount after you checkout. I'll email you with questions, or you email me first.

How To Use This Page

  • All parts fall into one of five prices, from $9.99 to $39.99.
  • Find the part number you need.
  • Find the price box on the right that matches the price of the part.
  • Find it in the drop down box (you can type the part number to quickly find it, too), then click Add To Cart.

Look for Complete Kits to save cash (Trigger Assembly Kit, Hammer Kit, Plastic Breech Kit, etc).

Front Sight 788-101 $9.99

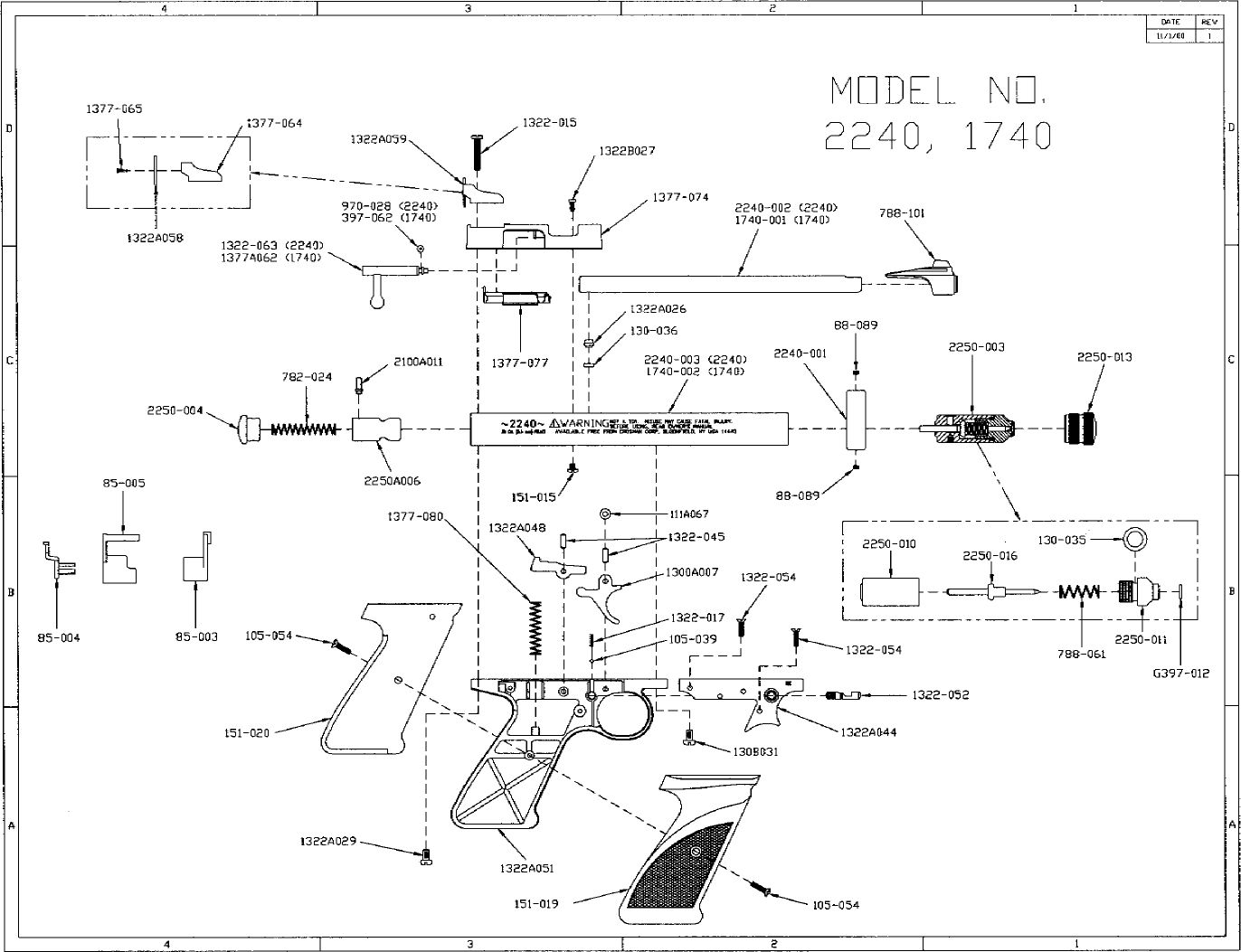

Schematic

$9.99 Part Number

$14.99 Part Number

$19.99 Part Number

$24.99 Part Number

$39.99 Part Number

2240 .22 Barrel
(requires $10 Shipping)
2240-002 $19.99
Plastic Breech Block ONLY 1377-074 $9.99
Plastic Breech Insert ONLY 1377-077 $9.99
Front Breech Screw 1322B027 $9.99
Rear Sight Block 1377-064 $9.99
Rear Sight Blade 1322A058 $9.99
Elevation Screw 1377-065 $9.99
.22 Brass Bolt 1322-063 $9.99
.22 Bolt O-Ring 970-028 $9.99
Transfer Port Bushing 1322A026 $9.99
Transfer Port Sleeve 130-036 $9.99
.22 Plastic Breech + TP Kit (Complete)   $19.99
Piercing Stem 2250-013 $9.99
Valve Assembly (Complete) 2250-003 $24.99
Valve Face Gasket G397-012 $9.99
Valve Screw 151-015 $9.99
Valve Face 2250-011 $9.99
Valve Inner O-Ring 130-035 $9.99
Valve Spring 788-061 $9.99
Valve Stem 2250-016 $14.99
Valve Body 2250-010 $14.99
Barrel Band Only 2240-001 $19.99
Barrel Band Screw 88-089 $9.99
Barrel Band + Screws (Complete)   $24.99
2240 Main Tube 2240-003 $19.99
2300T Main Tube
(same as 2240, but not engraved)
2300A044 $24.99
Hammer ONLY 2250A006 $14.99
Hammer Pin ONLY 2100A011 $9.99
Hammer Spring 782-024 $9.99
Hammer Kit
(Hammer, Pin, Spring) (Complete)
  $19.99
Hammer Cover 2250-004 $9.99
Bare Grip Frame ONLY 1322A051 $9.99
Black Plastic Grip - Right 151-019 $9.99
Black Plastic Grip - Left 151-020 $9.99
Grip Screw 105-054 $9.99
Front Frame Screw (to main tube) 130B031 $9.99
Rear Frame Screw (to main tube) 1322A029 $9.99
Trigger Cover (plastic) 1322A044 $9.99
Trigger Cover Screw 1322-054 $9.99
Safety Bar 1322-052 $9.99
Safety Bar Ball Bearing 105-039 $9.99
Safety Bar Spring 1322-017 $9.99
Trigger, Black 1300A077 $9.99
Sear Spring 1377-080 $9.99
Trigger Dowel 1322-045 $9.99
Sear 1322A048 $9.99
Trigger Shim 111A067 $9.99
Trigger Assembly (Complete)   $39.99
